High Quality Standards
Habonim valves have been tested and certified for use in accordance to the exacting requirements of the semiconductor industry requiring: Helium leak tests, Moisture tests, Particle Generation tests and particular cleaning procedures. The high quality of materials, fine surface finish and leak free design, make it a superior valve for the High Purity Services of the Semiconductor Industry.

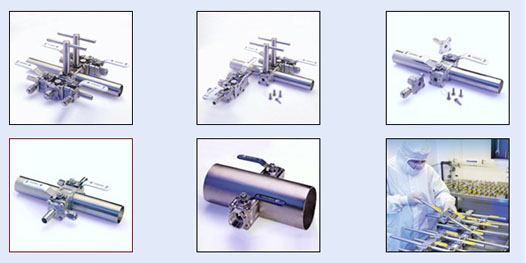

Cleanroom Assembly
Habonim has a fully equipped, positive pressure cleanroom for the assembly of valves.
The valves are cleaned, dried, helium leak tested, inspected, tagged and then packed in a hermetical sealed bag filled with Dry Nitrogen.
Size Range
1/2" 6" (DN15- DN150)
Application
Pharmaceutical, Biotechnology, Food & Beverage, Cosmetics
Service
Clean Steam, Purified Water, Water for injection (WFI ), Thermal Fluid, Gas, Chemicals, Solvents
Materials
316L Stainless Steel, Hasteloy-C, Alloy-20, Duplex 2205
End Connection
Extended Tube OD (ETO), Hygienic Clamp (TC )
Standards
Conforming to ASME BPE-2002,ANSI B16.34, API 598
Operation
Hand operated, Gear operated, Actuated
